Product description

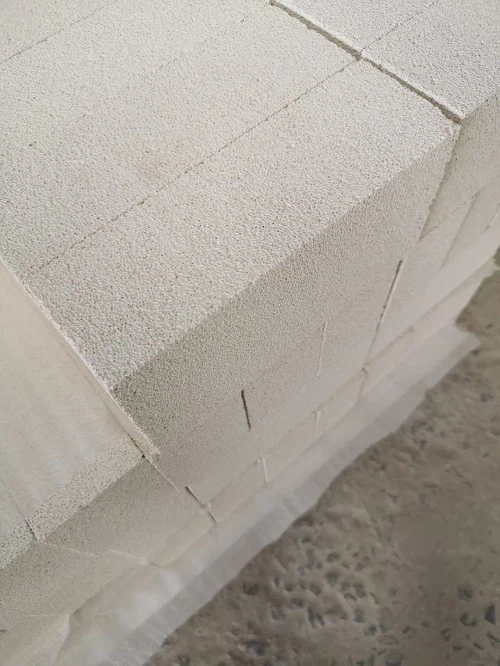

Soft insulating fire brick: refers to the Al2O3 content of 50%-85% light firebrick, with mullite as the main crystalline phase and the combination of high quality insulation materials. The main characteristics are: high strength of high temperature structure, low creep at high temperature, small thermal expansion coefficient, strong floc resistance, excellent thermal shock resistance. According to the different aluminum content and volume density, the use of temperature of 1350-1700℃, can directly contact the flame furnace working layer lining.
Application of soft insulating fire brick
Soft insulating fire brick is high level insulation products for kiln and furnace, which can be used for higher temperature insulating layer than common insulating bricks.
Applications of soft insulating fire brick:
◆Glass industries iron & steel industries
◆Ceramics industries non-ferrous metals industries
◆Heat surface fireproof lining other fire-proof back lining
◆Electrolytic Aluminum industries power generation industries
Advantages of CH Refractories manufactured soft insulating fire brick
◆ High purity
Low impurity content has very low oxide content such as alkali metals in the iron box, so it has high refractoriness and high aluminum content;
◆ Extend lining service life
The precise appearance dimensions can speed up the masonry construction, reduce the use of refractory mud, and ensure the strength and stability of the masonry;
◆ Customized on demand
bricks are easy to process and can be processed into special shapes according to customer needs, thereby reducing the number of bricks and joints.
Physical and chemical index of soft insulating fire brick
|
Brands |
JM23-0.6 |
JM23-0.8 |
JM23-1.0 |
JM26-0.6 |
JM26-0.8 |
JM26-1.0 |
JM28-1.0 |
JM28-1.2 |
|
Bulk density g/cm3 ≥ |
0.6 |
0.8 |
1.0 |
0.6 |
0.8 |
1.0 |
1.0 |
1.2 |
|
CCS/Mpa ≥ |
1.5 |
2.5 |
4.2 |
1.5 |
3.2 |
4.0 |
4.0 |
5 |
|
thermal shock resistance(1100℃)/times ≥ |
10 |
20 |
20 |
10 |
20 |
20 |
20 |
20 |
|
The reheating line changes by no more than 1% of the test temperature ℃/%≤ |
1300x12 |
1300x12 |
1300x12 |
1400x12 |
1400x12 |
1400x12 |
1500x12 |
1500x12 |
|
Thermal conductivity average temperature350±25℃(W/m.k) |
0.2 |
0.23 |
0.33 |
0.2 |
0.25 |
0.33 |
0.35 |
0.4 |
|
Al2O3%≥ |
48 |
49 |
50 |
55 |
57 |
57 |
60 |
67 |
|
Fe2O3% |
0.9 |
0.9 |
0.9 |
0.8 |
0.8 |
0.8 |
0.7 |
0.6 |
Packages and delivery:
CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system, and a full set of refractories conventional testing equipment, can ensure the quality before sending to customers.
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
Cost savings
Save your money with our logistics service taking advantage of quickly delivery.

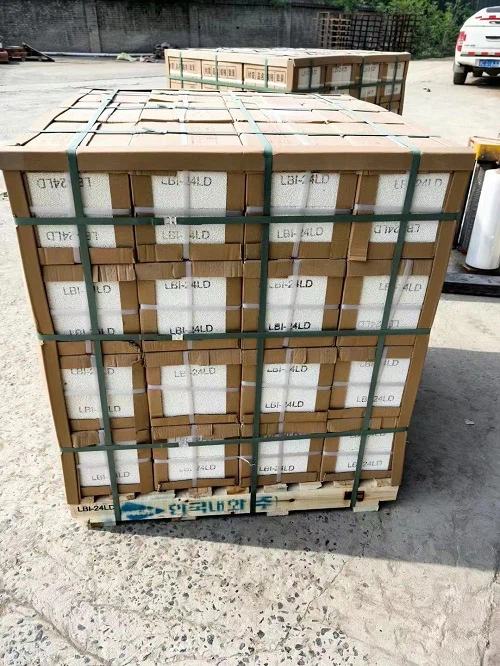

Suitable packages
We provide long distance sea worthy packages for insulation refractory bricks to protect bricks from damage
Proven Experience
CH Refractories was founded in 1984 with decades experience in producing refractory products
Quality products
Our products are produced according to ISO9001 standard have reached the international quality standards,
Technical Support
In the after-sales service,we provide technical services such as installation as well as commissioning and maintenance.
Free Samples
If you have a product in mind,please let us know and for the free sample
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
